Industrial Short Tee Sanitary Pipes And Fittings 10 Bar DIN11852 DN10-200

Name: Industrial Short Tee Sanitary Pipes And Fittings 10 Bar DIN11852 DN10200
Brand: NYHAU
Price: 1 USD

Quality Industrial Short Tee Sanitary Pipes And Fittings 10 Bar DIN11852 DN10-200 wholesale

Brand Name : NYHAU

Certification : 3A,CE,ISO,FDA

Place of Origin : KunShan,China

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Mouth

Delivery Time : 5-8 work days

Packaging Details : Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)

Raw Material : 304 Or 316L Stainless Steel

Dimensions According To : DIN11852

Connection End : Butt Weld

Size : DN10 ~ DN200

Main Type : Standard Type, Short Type

Applications : Connection Between Pipe Lines For Pharmaceutical And Biotechnology Industries

Contact Now

10 Bar Sanitary Butt Weld Fittings Short Tee Pipe Fitting DIN11852 DN10-200

Product Description:

This type of reducers are designed according to DIN11852 standard. They have butt weld ends and will be manualy welded to stainless steel pipes in DIN11850 standard and DIN11866 series B.

The dimension of branch port can be in short type or standard type.

Surface roughness meets DIN EN ISO4288 Ra<0.8μm (internal) Ra<1.6μm (external & weld)

Raw materials:

Stainless steel 304 or 316L

1.4301 X5CrNi18-10

1.4307 X2CrNi18-9

1.4404 X2CrNiMo17-12-2

1.4432 X2CrNiMo17-12-3

Technical Details:

Name: Sanitary Butt Weld Tees
Material: 304 or 316L stainless steel
Size: DN10 ~ DN200
Standards: DIN11852
Main types: Standard type, short type
Working pressure: 10 bar
Working temperature: -10 °C ~ +140 °C
Surface treatment: Food grade Ra<0.8μm

Product Tags:

sanitary pipes and fittings

sanitary pipe clamps

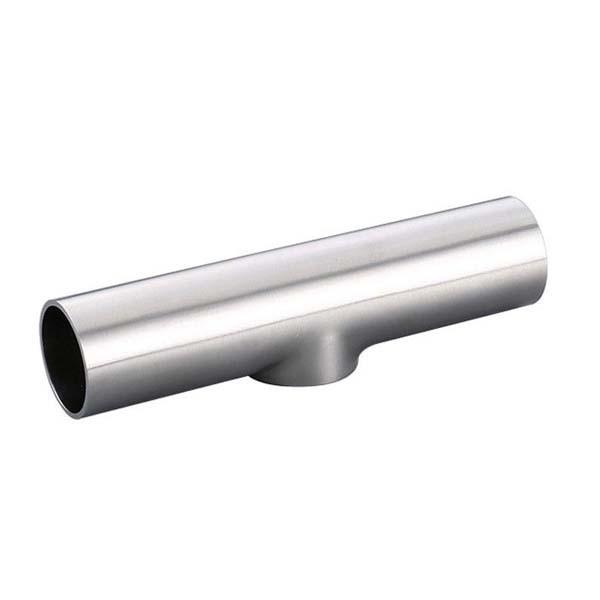

Industrial Short Tee Sanitary Pipes And Fittings 10 Bar DIN11852 DN10-200 Images
