Vacuum KF Reducer Centering Ring with Oring

Name: Vacuum KF Reducer Centering Ring with Oring
Brand: NYHAU
Price: 1 USD

Quality Vacuum KF Reducer Centering Ring with Oring wholesale

Brand Name : NYHAU

Certification : 3A,CE,ISO,FDA

Place of Origin : KunShan,China

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Mouth

Delivery Time : 5-8 work days

Packaging Details : Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)

Material : Stainless Steel

Type : Threaded Connection Flange

Standard : ANSI, DIN, GB, JIS

Structure : Round

Connection : Flanged

Sealing Surface : RF

Contact Now

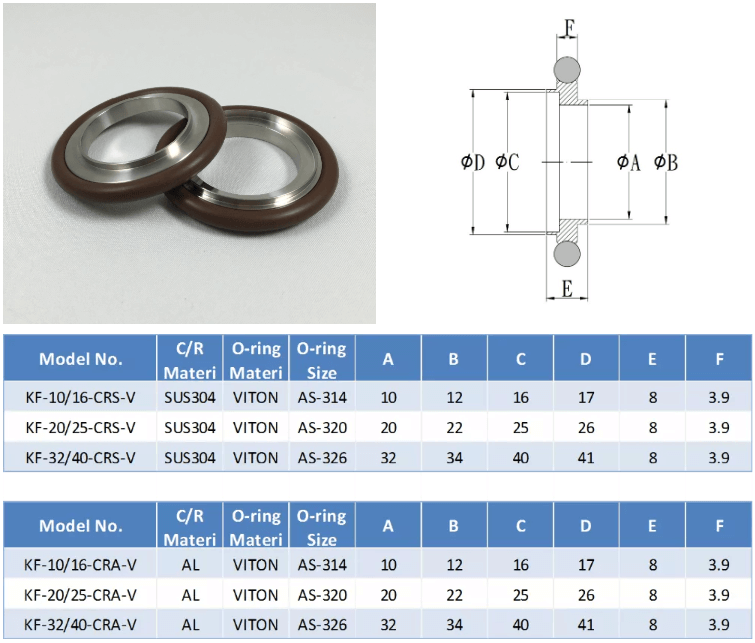

Centering Ring

Product Name	KF Reducer Centering Ring with Oring
Model Number	KF10/16, KF20/25, KF32/40
Material	stainless steel,Aluminum
Standard	ISO 9001:2015
Grade	SUS304L, SUS316L,AL
USE	Vacuum

Applications

ISO-KF fittings can be used in a wide variety of applications including:

• Roughing and foreline plumbing

• Small systems

• Systems requiring frequent cleaning or modification

• Research and teaching laboratories ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Material and Size

• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps: Aluminum or Stainless Steel 304
• Oring: Viton

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Vacuum KF Reducer Centering Ring with Oring

Product Tags:

kf vacuum fittings

o ring bracket

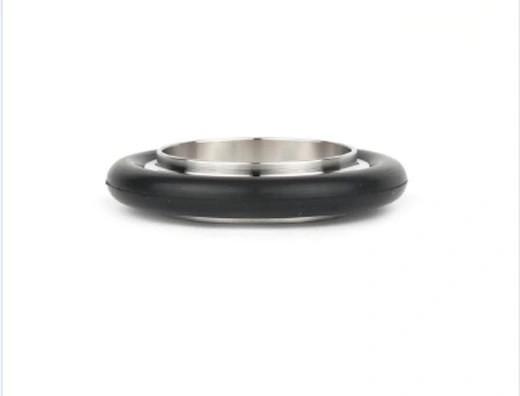

Vacuum KF Reducer Centering Ring with Oring Images
