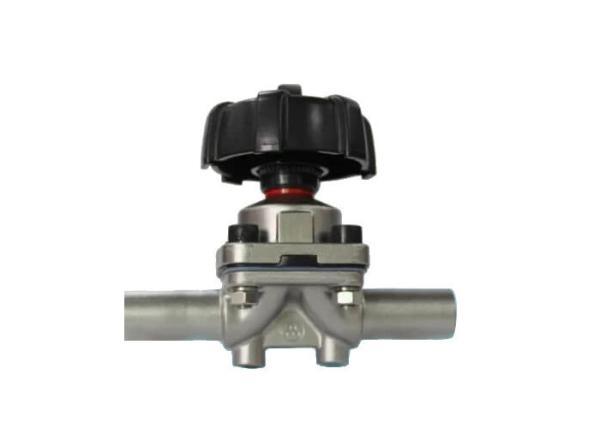

Stainless Steel Welded Sanitary Diaphragm Valves Pneumatic Actuated

Stainless Steel Sanitary 3A Forged Pneumatic Diaphragm Valve SS316L SS304

Standard : 3A

Our company offers other standard, such as DIN, SMS, ISO/IDF, RJT etc

Connection way: Welded.

Our company offers other types connection way diaphragm valve, such as clamped, T-type tee, U type tee etc.

The parts of valve: an actuator, diaphragm and body which assemble together with bolts and nuts. Sanitary Stainless Steel Mini Manual Welded Diaphram Valve's actuator is manual. The body is two way.

Material:

Steel componens: Stainless steel 304, stainless 316L
Seal: EPDM+PTEE the seals are imported seal material (which conform to the FDA177.2600standard).

Work principle:

The diaphragm is close under normal state, and that moment the diaphragm clung tho the valve body cavity, and closing off the flow path through the pipeline. When the diaphragm valve have the requirment to clean or open. The valve stem moves upwards according to the manual actuator equipment, spherical diaphragms naturally nemd upwards, so that the valve is open and reach the requirement of clean and open. The diaphragm make the lower body cavity and the upper chamber separted from the valve cover, so that the stem at the top of the diaphragm, disc media and other parts from corrsion, eliminating the need for packing structure, and no media leaks, the optimize valve body made the cleaning liquid flow out totally, so that don't have any entrapment.

hygienic diaphragm valve

three way diaphragm valve
