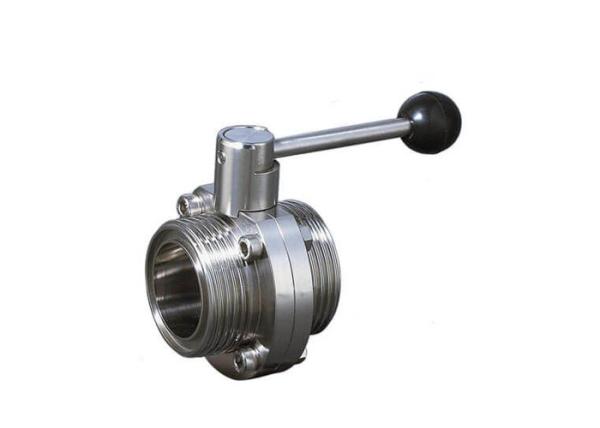

Threaded Male Hygienic Butterfly Valves Rjt Standard Food Grade SS304 SS316L Material

Brand Name : NYHAU

Certification : 3A,CE,ISO,FDA

Place of Origin : KunShan,China

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Mouth

Delivery Time : 5-8 work days

Packaging Details : Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)

Material : Forged 304 Or 316L Stainless Steel

Power : Pull Rod Manual Handle

Size : 1/4" ~ 4", DN6 ~ DN100

Connection End : Male Thread, Female Thread

Structure : Butterfly Type

Gasket : Free choice among EPDM, PTF E, FPM or NBR

Origin : Wenzhou, China

Application : Pipeline Of Hygienic Industries Like Food, Dairy, Cosmetics, Pharmacy, Chemical, Beverage, Breweries

Working Temperature : -10℃ ~ +95℃

Surface Process : Matte or mirror Polishing 180#/240/320/400

Contact Now

Sanitary Food Grade SS304 SS316L Rjt Standard Threaded/Male Butterfly Valve

Features:

  • Consists of two symmetrical valve covers, flat round valve disc, pull rod handle, sealing gasket, and mounting kits
  • Light in weight and very simple operation
  • Installed in sanitary stainless steel pipeline by thread connection
  • 4 gear pulling handle to open-close the valve for medium flow control
  • Thread end specs: NPT, BSP, BSPT

Highlights of Thread Connection End:

  • Excellent sealing performance for small sized pipelines
  • Very easy installation, detachable any time
  • Standard thread spec suitable for very wide range of of pipe system

Our Quality Control:

  • PMI test to verify material grade
  • Dimension control during fabricating and finished
  • All valves should 100% pass press test
  • Firm and strong packing for air and sea shipment
  • Third party inspection available

Specifications:

Driving Mode: 4 Gear pull rod handle
Connection End: Male thread, female thread
Size: 1/2' ~ 6', all other sizes can be customized
Material: SUS304, or SUS316L
Gasket: Free choice among EPDM, PTF E, FPM or NBR
Working Pressure: Low Pressure (Pn<1.6mpa)
Working Temperature: -10℃ ~ +95℃
Surface Process: Matte or mirror Polishing 180#/240/320/400
Connection Standard: 3A, DIN, ISO, SMS, RJT, IDF
